OPPO R827 logo only

http://forum.gsmhosting.com/vbb/f664/oppo-r827-logo-only-2237929/

Model Settings:
Interface : eMMC
Voltage : 1.8V
Bus Mode : 1
Bus speed : Auto

Connecting...

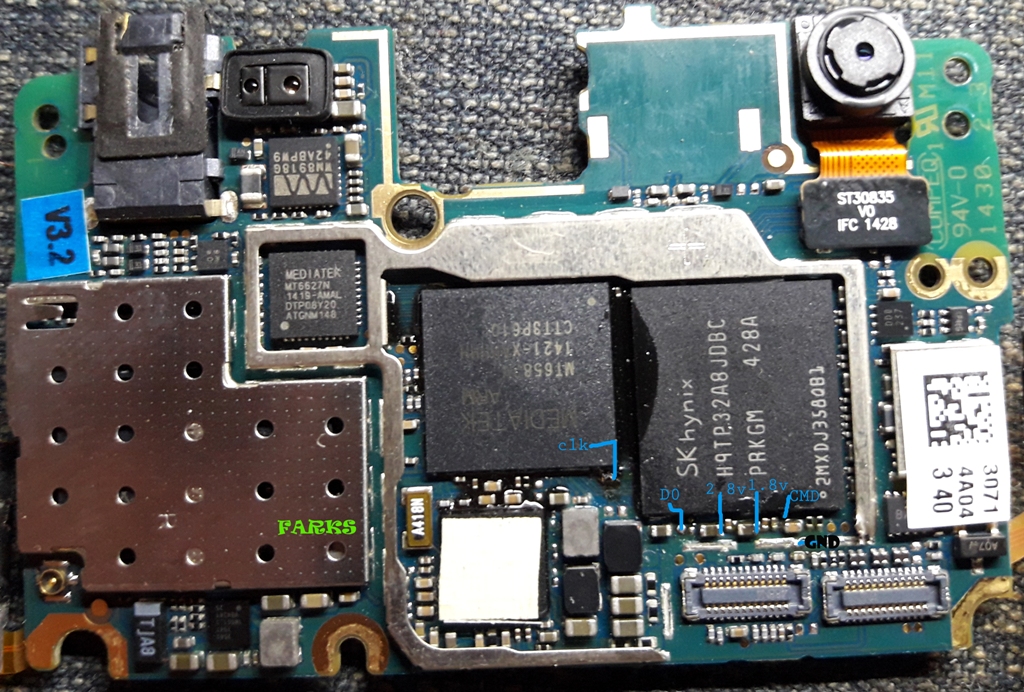

Device : Hynix eMMC H4G1d
Page size : 512 B
Block size : 512 B
Block count : 7634944
Size : 3728.00 MB
---------------------------------------------------------------
CID Info

CID : 90014A4834473164040502A1311071FF
Manufacturer ID : 0X90
Device/BGA : BGA (Discrete embedded)
OEM/Application ID : 0X4A
Product name : H4G1d
Product revision : 0.5
Product serial number : (hex) 2A13110
Manufacturing date : 07/2014
---------------------------------------------------------------
CSD Info

CSD : D02701320F5903FFFFFFFFEF8A4040D3
CSD structure : CSD version No. 1.2
SPEC version : 4.1, 4.2, 4.3, 4.4, 4.41, 4.5,
4.51, 5.0, 5.01, 5.1
Data read access time1: 15 ms
TRAN speed : 26 MHz
READ block length : 512 Bytes
WP group enable : YES
PERM_WRITE_PROTECT : NO
TMP_WRITE_PROTECT : NO
---------------------------------------------------------------
EXTCSD Info

Revision 1.6 (for MMC v4.5, v4.51)
Erase block size : 512 Kbytes
Boot1 size : 4096 Kbytes
Boot2 size : 4096 Kbytes
RPMB size : 4096 Kbytes

Partition config : 01001000
Boot partition enable : Boot partition 1 (Bus width = 1Bit)
Boot ACK : Boot acknowledge sent during boot operation Bit

Boot bus conditions : 00000000
Boot bus width : x1 (sdr) or x4 (ddr) bus width in boot operation mode (default)
Reset boot bus conditions : Reset bus width to x1, single data rate and backward compatible timings after boot operation (default)
Boot mode : Use single data rate + backward compatible timings in boot operation (default)

Partitioning support : Device supports partitioning features
Enhanced attribute : Device can have enhanced technological features in partitions and user data area.
Max enhanced data size: 1908736 Kbytes
Partitions attribute : 0x0
Part setting completed: 0x0
GP partition 1 size : 0 b
GP partition 2 size : 0 b
GP partition 3 size : 0 b
GP partition 4 size : 0 b
Enhanced area size : (0x0) 0 b
Enhanced area start : (0x0) 0 b

Backup EXT_CSD saved to file E:/Octoplus/Octoplus Pro JTAG Software/EXT_CSD Backups/H4G1d_26_06_2017_22_05_25.bin.
Connect successful.
---------------------------------------------------------------
SW: 1.3.9; FW: 1.19.
Disconnected.
